Crash Lock Bottom Folder Gluer Machine With Remote Control Airplanes 0-220m / min

Brand Name : Printyoung
Model Number : ZH - 800G

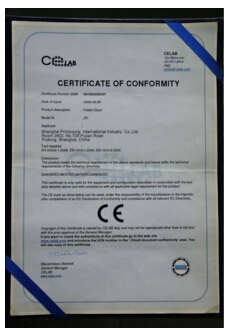

Certification : CE
Place of Origin : China
MOQ : 1 Set
Price : Negotiation
Payment Terms : L/C, T/T, Western Union
Supply Ability : 30 sets per month
Delivery Time : 30 working days after received your payment
Packaging Details : Neutral packaging, suitable for shipping in a solid iron frame composite box or fumigation wooden box, to adapt to climate change, Fang Lin, moisture, mold, shock, rust.
Type : Paper box making machine
Processing type : Gluing machine
Box forming : Straight line prefold line bottom lock
Paper weight : 210-660gsm
Driven type : Electric
Speed : 0-220m/min
Application : Food Medical
Weight : 1300kg
Contact Now

Crash Lock Bottom Folder Gluer Machine With Remote Control Airplanes

Quick Details

ZH-800G/880G/1000G is the latest multi-functional crash lock folder gluer; it made indelible contributions to the firld of folder gluer. It comblnes a variety of folder gluer features, the general-paste, pre-folded edges with crash lock bottom. It's powerful, widely usage, easy operating and adjusting boxes. Especially for the current packaging and printing industry-competitive business, the delivery of the tight schedule offers great convinience, so the packaging equipment is ideal for the printing industry. It is widely used in processing medecine box, wine box, cosmetics box, electric appliances, packing box, etc. ZH-G was awarded two patents.


Line Speed:0-220m/min adjustable

Paperboard:210-660gsm paperboard

Box forming;both sides prefold,fold from either side,either sdide glue,bottom glue.

Paper board feeding:Automatic

way of folding:1st,2nd and 4th fold 180°,3rd folds 135°

Gluing:four stations,2 upper stations,2 lower stations.Each lower station has a grindingwheel for cleaning UV varnish and ink off the flap before gluing.

Glue type:water solvable



Auto Counting Range:0---999999 No.with batching facility

New Features

Pressure table : Independent speed control,With Cover

Trombone : Wire-controlled jogging to change fixed wallboard

The place of paper board feeding is embedded

Bale no disassembly,long service period

line box crash lock bottom

ModelBox type(A Max)(A Min)(B Max)(B Min)(C Max)(C Min)(D Max)(E Min)
ZH-800GStraight line box(I)56010650652705076
Pre-fold box(I)5601805006527090106
Crash lock bottom box(I)5601605006527080406
ZH-880GStraight line box(I)660110500653205076
Pre-fold box(I)660180500653205076
Crash lock bottom box(I)6601605006532080506
ZH-1000GStraight line box(I)7601306008037060108
Pre-fold box(I)7601806008037090158
Crash lock bottom box(I)7601806008037090608
